EEG equipment
A foundation for thoughtful EEG research.
Explore the EEG acquisition board and the recording details that belong with it. An electrode helmet is also planned; hardware specifications will be published as they are verified.

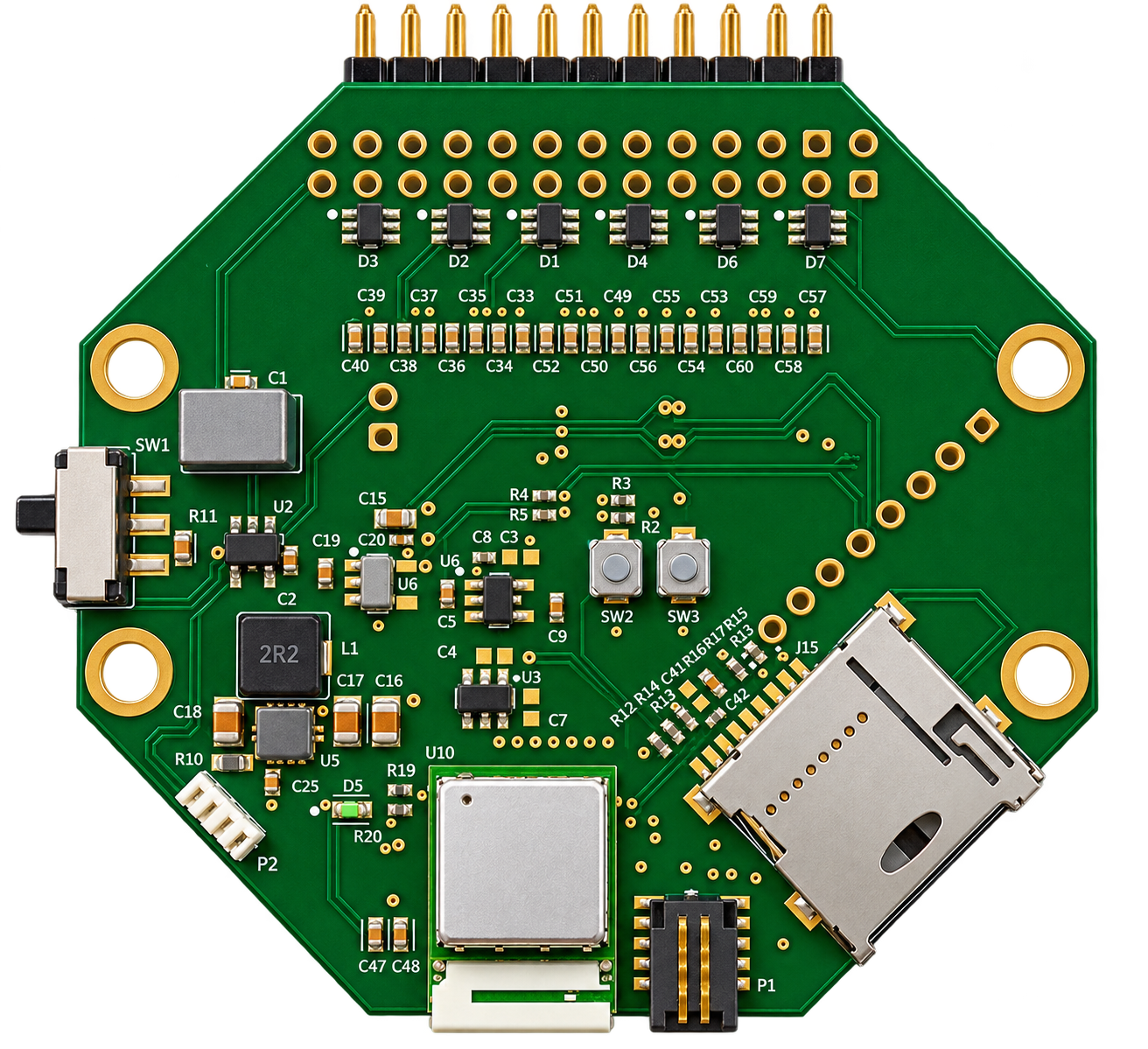

The EEG acquisition board.
The printed circuit board for the BrainMedTech EEG system. This board image is supplied by BrainMedTech.
Board revision, acquisition specifications, and validation details will be published when confirmed. The demo’s eight-channel setup is synthetic and does not define this board’s capabilities.
View full-size PCB image
The acquisition board
Capture the recording with its hardware revision, firmware, and acquisition settings documented.
The electrode helmet concept
Make electrode placement, fit, and contact checks part of each recording protocol.
The session record
Keep equipment settings and recording conditions connected to the comparison.
Record what matters
A useful signal starts with a documented setup.
Acquisition
Board and firmware revision, channel count, sample rate, units, and recording settings.
Electrode setup
Electrode positions and type, reference, fit, and contact-quality checks.
Session context
Device and protocol, settings with units, placement, timing, and start/stop markers.
Recording conditions
Eyes open or closed, posture, movement, interruptions, and baseline and recovery periods.
